Products >> Production Line For Pipes >> PVC single-wall corrugated pipe machines

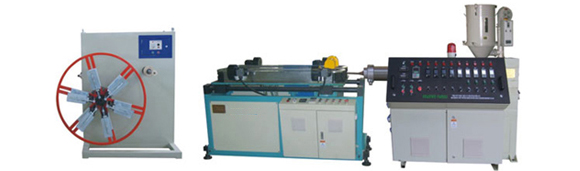

The machines produce precision small-bore single-wall corrugated pipes by use of PVC, PP, PE and PA. One-step molding technology is applied to the making of moulds, which make the inner and exterior walls of the pipe smooth and delicate and make the corrugation even and clear. With aid of the mating slitting machine, the pipes can be cut vertically along the axis.

The pipes are widely used as cable glands in vehicles, motors, and on washing machines, vacuum cleaners, blowpipes, special pipes for concrete, as well as in farm fields.

Main technical data

Machine models
RD-GDB30
RD-GDB45
RD-GDB65
Pipe ranges(mm)
Ф4.5-Ф13
Ф10-Ф34.5
Ф28.5-Ф54.5
Extruder models
Ф30/25
Ф45/25
Ф65/25
No. of standard models(pair)
60
46
52
Production speed(m/min)
4-6
5-7
5-7
Installed capacity(KW)
10
18
28
