| Products >> The pioneer of double wheel irrigation tape production line |
| |
 |
 |

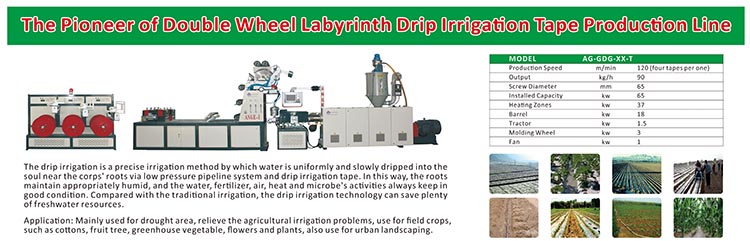

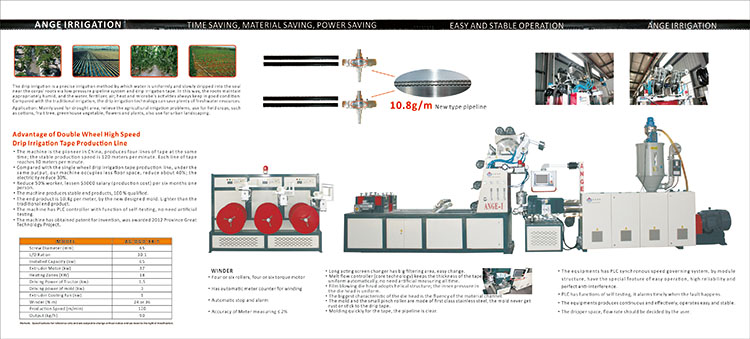

| Advantage of Double Wheel High Speed Drip Irrigation Tape Production Line |
- The machine is the pioneer in China, produces four lines of tape at the same time; the stable production speed is 120 meters per minute. Each line of tape reaches 30 meters per minute, based on the commissioning on site, and needs qualified raw materials and skilled workers.
- Compared with the single wheel drip irrigation tape production line, under the same output, our machine occupies less floor space, reduce about 40%; the electricity reduce 30%.
- Reduce 50% worker, lessen $3000 salary (production cost) per six months one person.
- The machine produces stable end products, 100 % qualified.

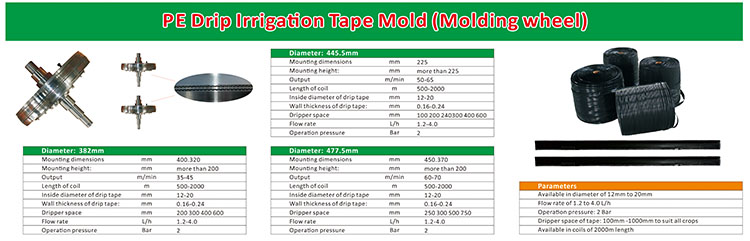

- The end product is 10.8g per meter, by the new designed mold. Lighter than the traditional end product 11g per meter.
- The machine has PLC controller with function of fault self-testing, no need artificial testing.

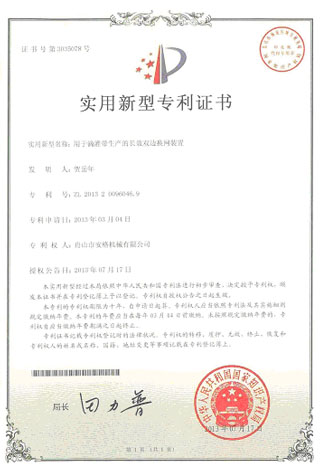

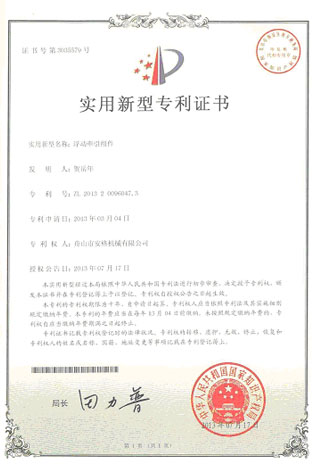

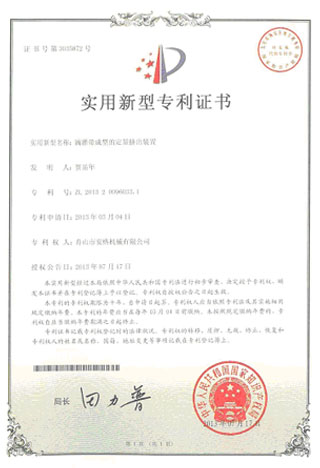

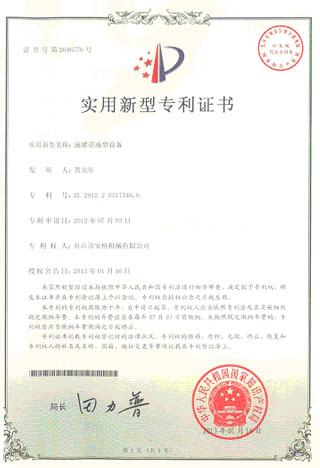

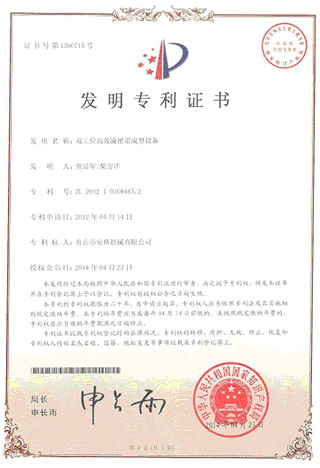

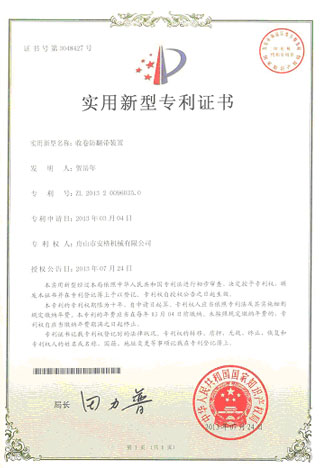

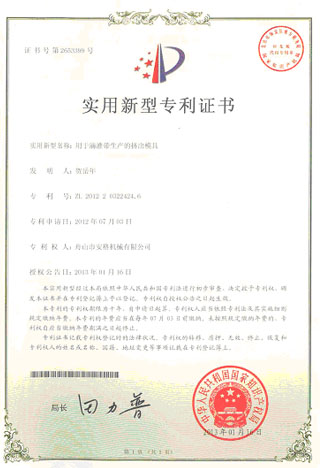

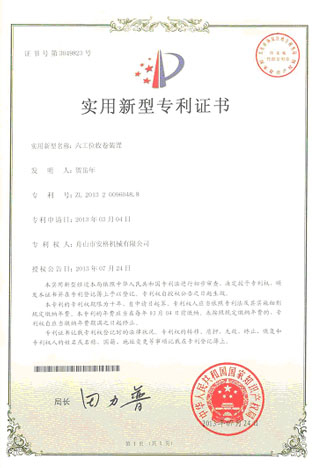

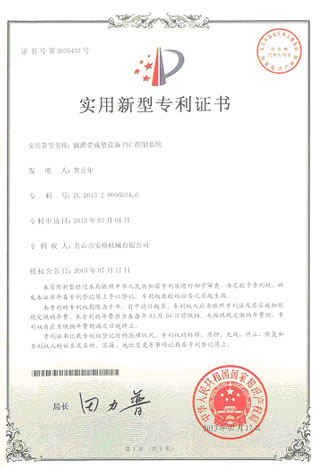

- The machine has obtained patent for invention, was awarded Province Great Technology Project 2012.
Comparison with Single Wheel Drip Irrigation Tape Production Line *see table
Item |
Double wheel drip irrigation tape production Line |
Single wheel drip irrigation tape
production line |
Description |
Advantage |
Description |
disadvantage |
Machine frame |
Standard national 8# rectangular tube |
Heavy and high craft precision |
Not standard, thin tube |
Light , craft rough, always shake |
Surface of water tank |
Imported stainless steel |
Non-rust |
Common stainless steel |
Easy rust |
Traction roller |
PU |
Abrasion and acid proof, |
Rubber |
Abrasion easy |
Motor |
Siemens Beide (joint venture) |
Long use life |
Common motor |
Lower use life |
Thickness controller for tape |
Closed loop system with all time testing and control |
Keep the thickness of tape uniform, reduce the unqualified tape. Bursting pressure rises 20% than the traditional tape. |
Don’t have thickness controller |
When the screen block, the thickness of tape gets uniform. Need artificial testing all time, not scientific and economic. |
Controller for machine |
PLC |
Easy operation, has function of fault self-testing |
Manual |
Complex operation, needs artificial testing |
Contactor |
Siemens |
Performance stable, long use life |
Chinese brand |
Poor quality |
Relay |
Omron |
Performance stable, long use life |
Chinese brand |
Poor quality |
Each pipe line |
Has temperature testing |
Convenient for shaping the pipe |
Don’t have |
Inconvenient |
Barrel heater |
Aluminum with stainless steel cover |
Heating fast, keep warm long time |
Mica heater |
Heating slowly, keep warm short time |
Service air |
Has micro air pump |
Small noise |
Don’t have |
Big noise |
Scald prevention |
Has protective cover |
Production safety |
Don’t have |
Worker has risk |
|
| |
 |
| |
 |
 |
 |
 |
 |
| |
 |
 |
| |
 |
 |
| |
 |
 |
| |
 |
 |
| |
 |
|
| |
|
|
 |
|
