Products >> Plastics Machinery >> Special extruder for wire and cable sheating

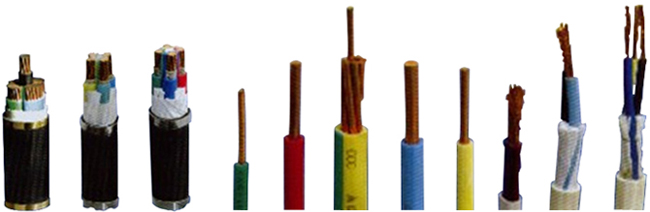

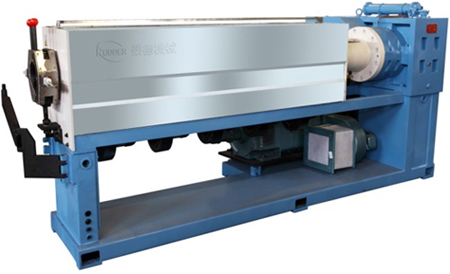

RD series high effective single screw extruder for wire and cable sheathing is result of our research, accumulate of experience and technology advantages, Equipped with the special screw it can be used in processing different material such as PVC, PE, PBT, Nylon, lower smoke and no-halogen material and fluorine plastic to produce wire, cable, optic fiber, optic cable sheathing and coating.

The machine is stable in performance and leading in technology, of good exterior. It represents the trend of modern cable manufacturing industry. It runs stably and efficienttly.

Technical data

Description
L/D ratio
Power of motor
(KW)
Speed of screw
(RPM)
Heating power
(KW)
Heating zone
Capacity
(kg/h)
RDD45 extruder
25
11、15
75-150
8
3-4
32-55
RDD50 extruder
25、30
15-22
75-120
8
3-4
40-65
RDD65 extruder
25
18.5-30
80-120
12-18
4-5
80-100
RDD90 extruder
25
55-90
70-110
20-30
5-6
180-280
RDD120 extruder
25
90-132
70-90
48
6
300-360
RDD150 extruder
25
132-185
65-80
70
6
500-650
RDD200 extruder
25
250-315
50-65
130
7
800-1000
45
PE coaxial
foam cable
extruder
36
15
90
9
6
25
65
36
22
90
18
6
45
90
36
45
70
32
9
100
